Working Principle
The liquid enters the housing through a side-entry inlet and is evenly distributed inside before flowing into the filter bag. Under pressure, the liquid passes through the filter bag, where solid particles are retained, while the clarified liquid exits from the bottom outlet, achieving solid-liquid separation. As operation continues, impurities gradually accumulate in the filter bag; therefore, the top cover needs to be opened periodically to replace the filter bag and maintain filtration efficiency.

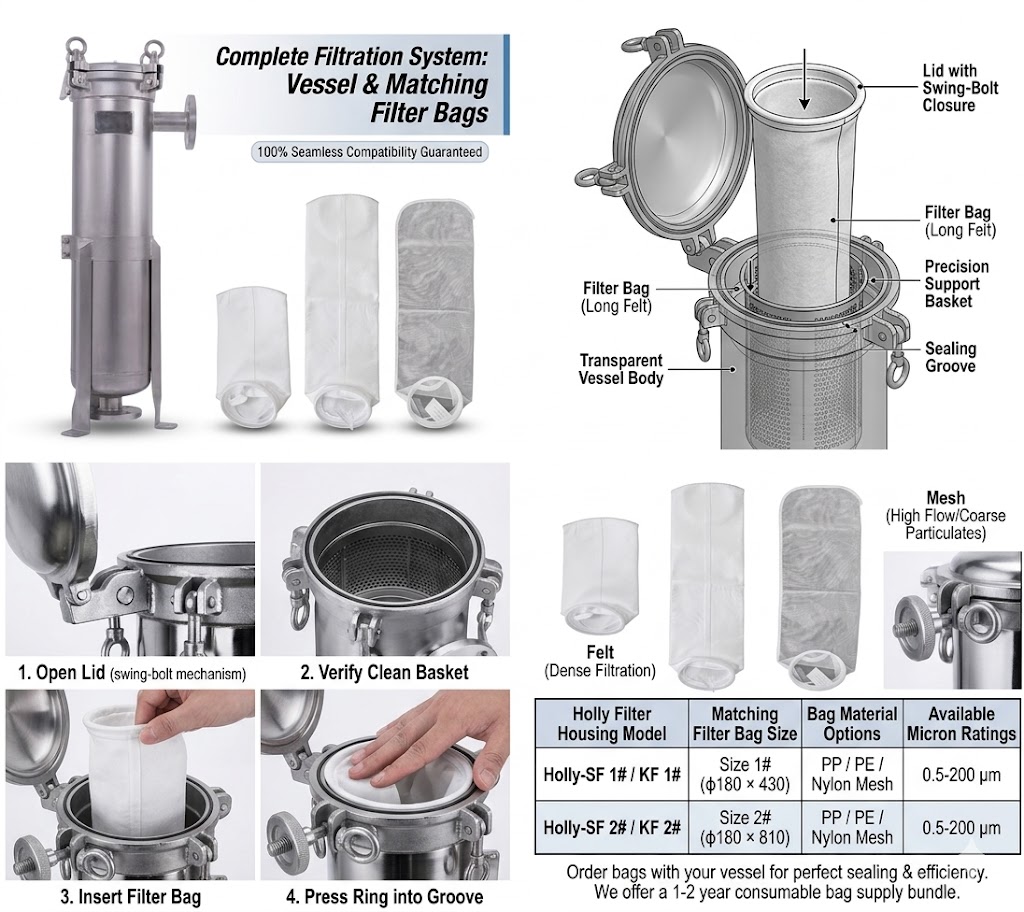

Complete Filtration System
Key Features
①Side Entry Design – Side-to-bottom flow improves filtration efficiency and process stability

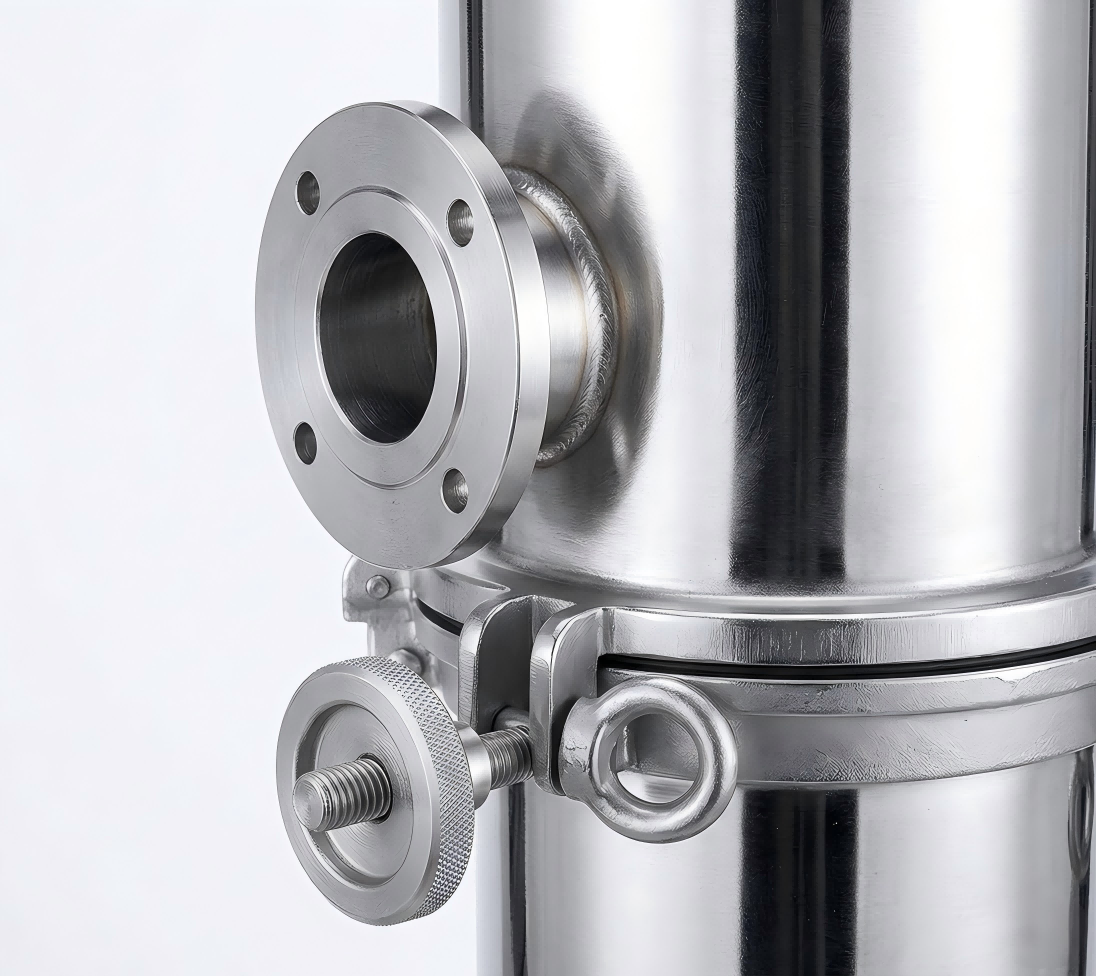

②Adjustable Inlet Pipe – Flexible inlet direction to suit different pipeline layouts
③Simple Structure – Compact design with fewer components for reliable operation

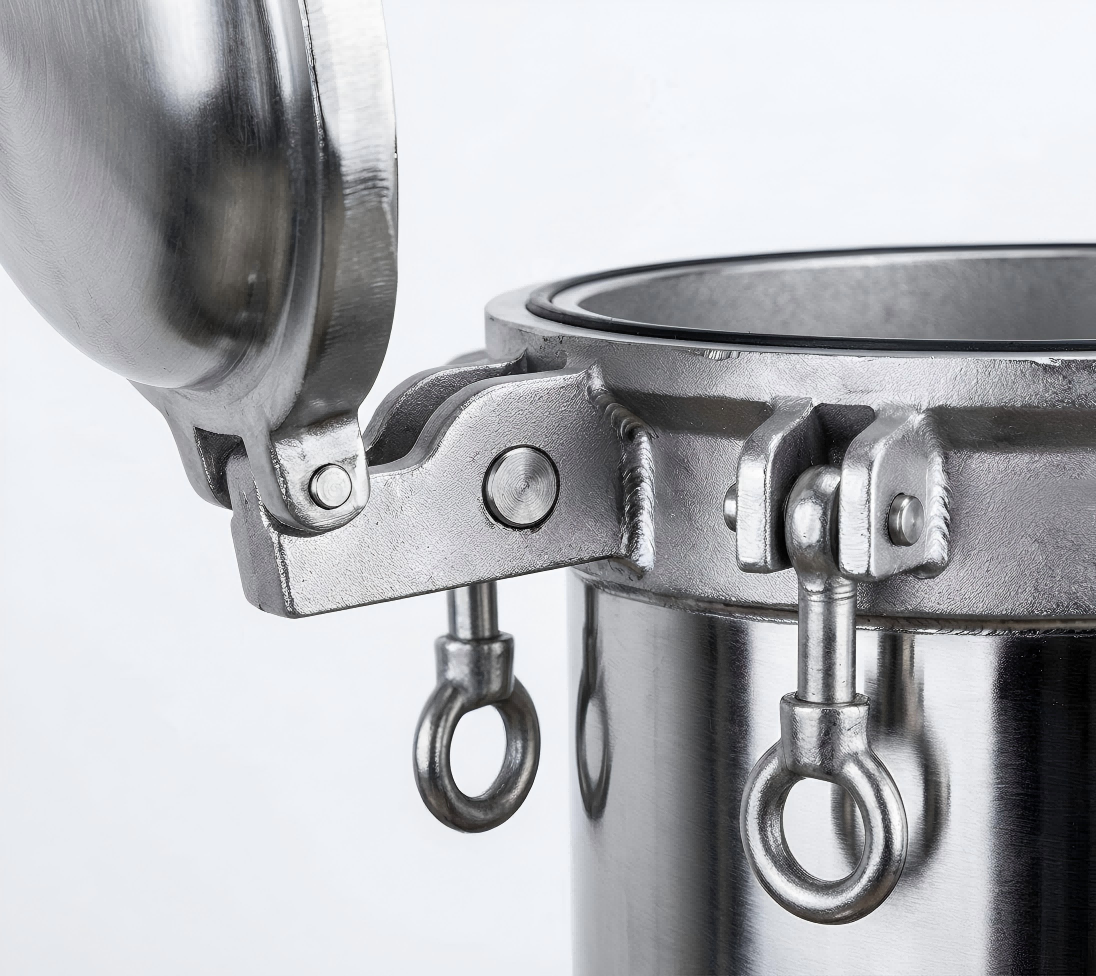

④Easy Maintenance – Quick and convenient bag replacement and internal cleaning

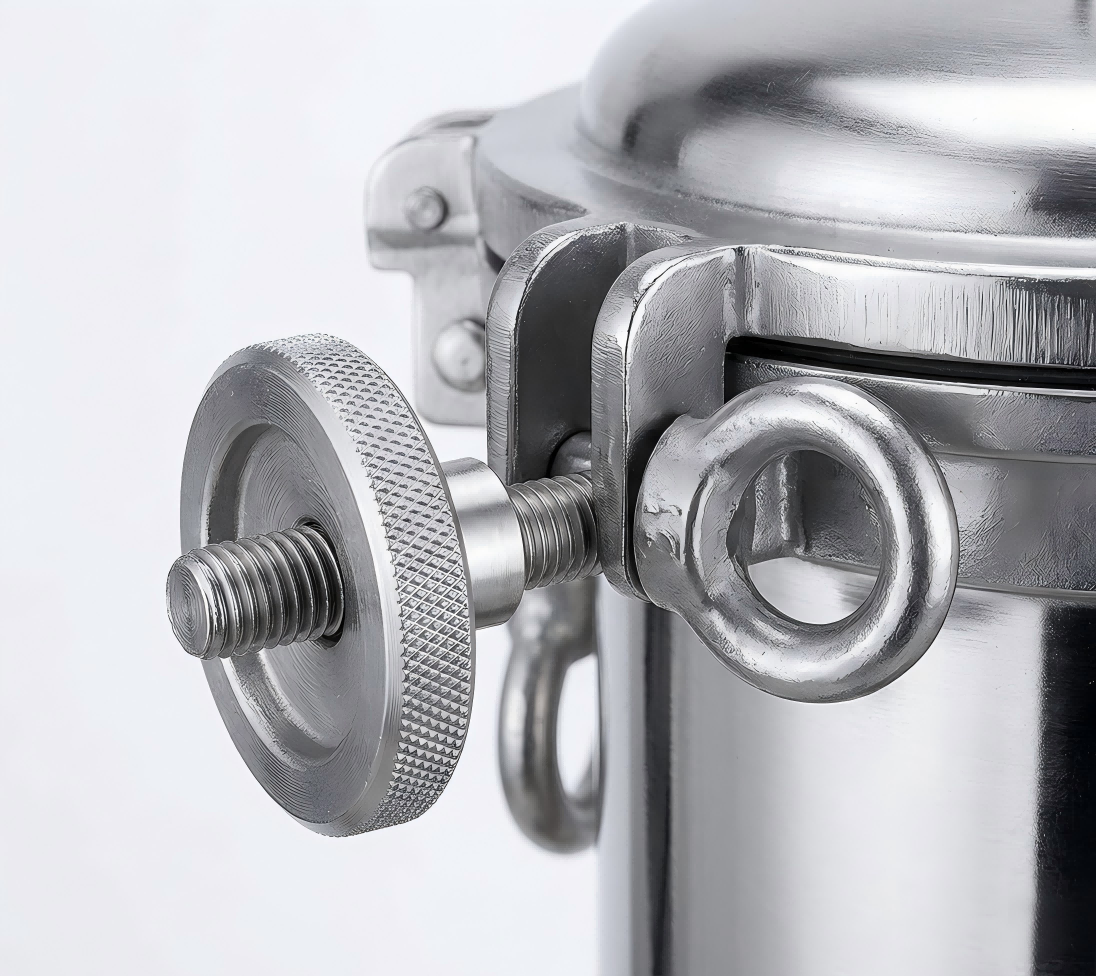

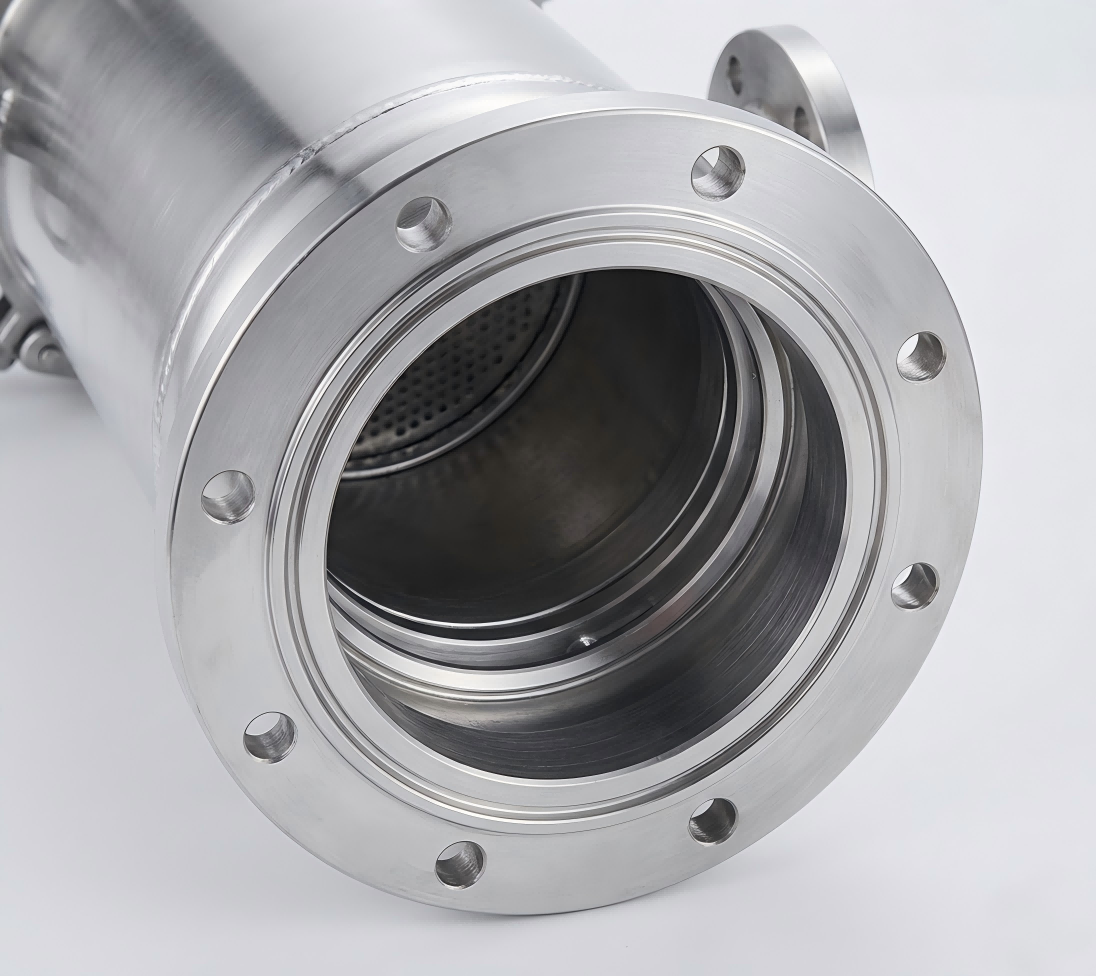

⑤High-Pressure Sealing – Bolt-on and integrally welded cover ensures leak-free performance under pressure
⑥Durable Construction – Built for long-term industrial use and harsh working conditions
⑦Cost-Effective Solution – Optimized design reduces operating and maintenance costs
⑧Wide Applications – Ideal for water treatment, chemical processing, and food & beverage industries
Applications
Water Treatment: Used for raw water pre-treatment, circulating water systems, and process water filtration
Chemical Industry: Filters chemical liquids, solvents, and particulate impurities in various process fluids
Food & Beverage: Used for purification of liquid raw materials, additives, and process water
Pharmaceutical Industry: Applied in liquid clarification and pre-filtration during pharmaceutical processes
Petrochemical Industry: Used for impurity control in oils, chemical additives, and process fluids
Coatings & Paints: Removes particles to ensure product consistency and quality
Electronics Industry: Used for pre-filtration of ultra-pure water and process liquids

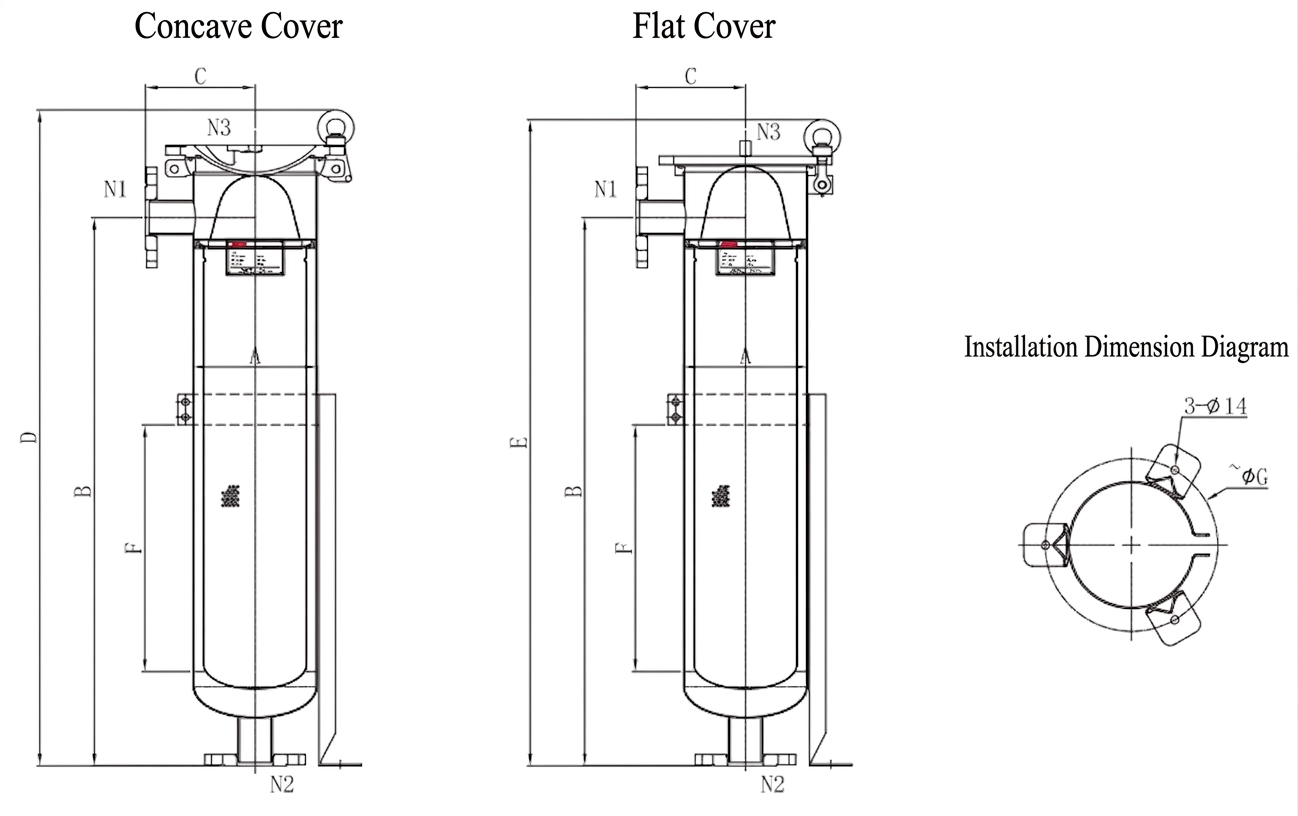

Technical Specifications
| Quantity | 1 | Max Flow Rate | 40 m³/h |
| Size | 01: Φ180 × 420 | Max Operating Temperature | 150°C |
| 02: Φ180 × 810 | Maximum Operating Pressure | Size 01/02 bags: 1.0 MPa | |
| 03: Φ102 × 230 | Size 03/04 bags: 1.6 MPa | ||
| 04: Φ102 × 380 | Notes:
1. Flow rate depends on the filter media and fluid viscosity. 2. Operating temperature depends on the filter bag and sealing material. |
||
| Inlet/Outlet Connections | DIN / ANSI / BSP / NPT, etc. | ||
