Filter Bags for Solid-liquid Separation

Short Description:

Our filter bags provide reliable solid–liquid separation for a wide range of industrial applications. They are available in polypropylene (PP) and nylon, offering excellent chemical resistance, stable filtration performance, and long service life. Suitable for use in wastewater treatment, chemical processing, food & beverage, and general industrial filtration systems.

Get a Quote

Product Detail

Product Tags

Product Video

Product Features

✅ High Filtration Efficiency – Effectively captures solid particles for clean and stable filtration results.
✅ Material Options (PP & Nylon) – Offers excellent chemical resistance, temperature tolerance, and compatibility with various liquids.
✅ Durable Construction – Strong seams and robust design ensure long service life and reduced replacement frequency.
✅ Easy Installation & Replacement – Fits standard filter housings and allows quick maintenance.
✅ Wide Application Range – Suitable for wastewater treatment, chemicals, food & beverage, and general industrial processes.
✅ Cost-Effective Solution – Provides reliable performance with low operation and maintenance costs.

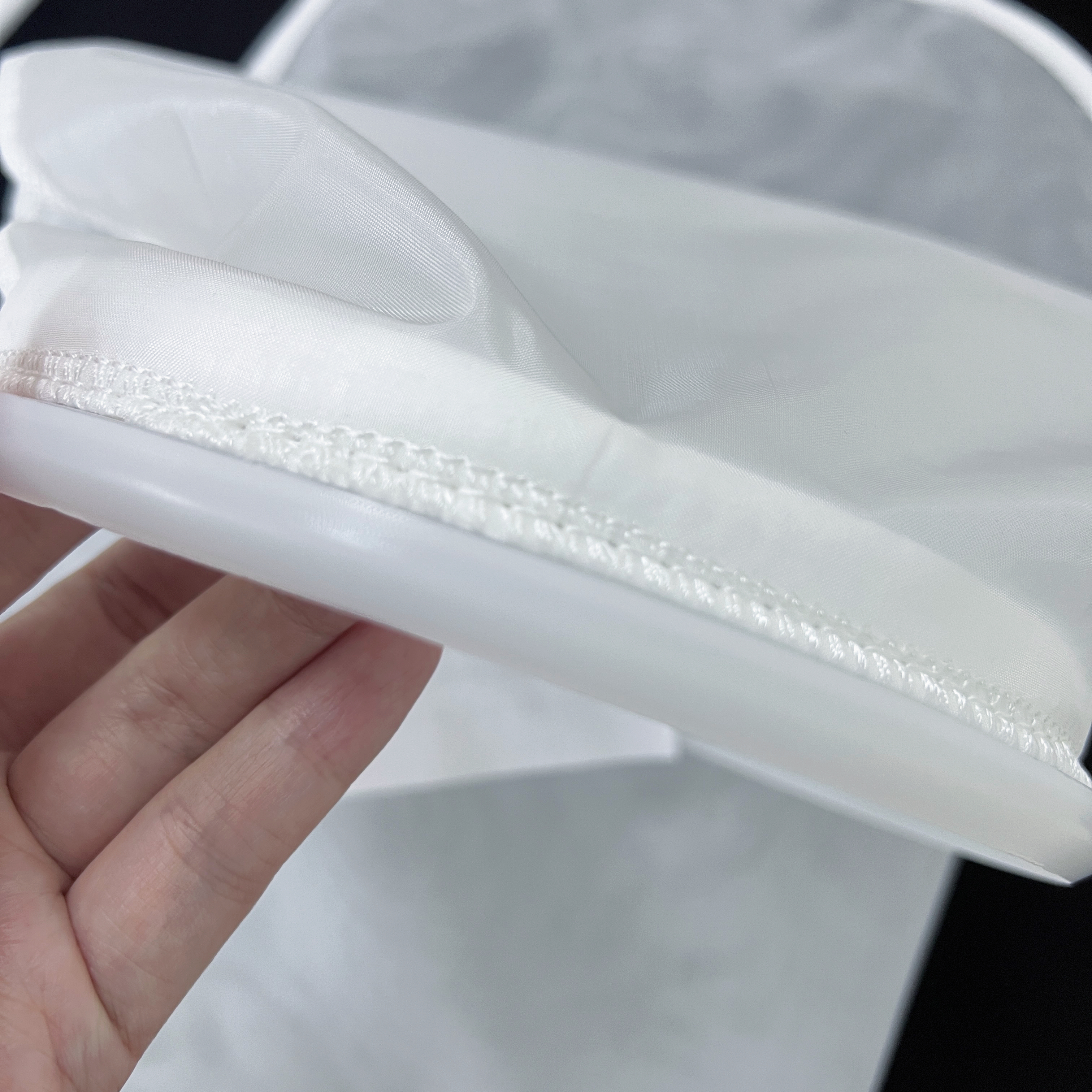

PP Material

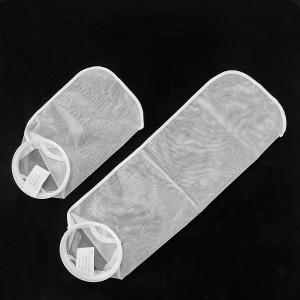

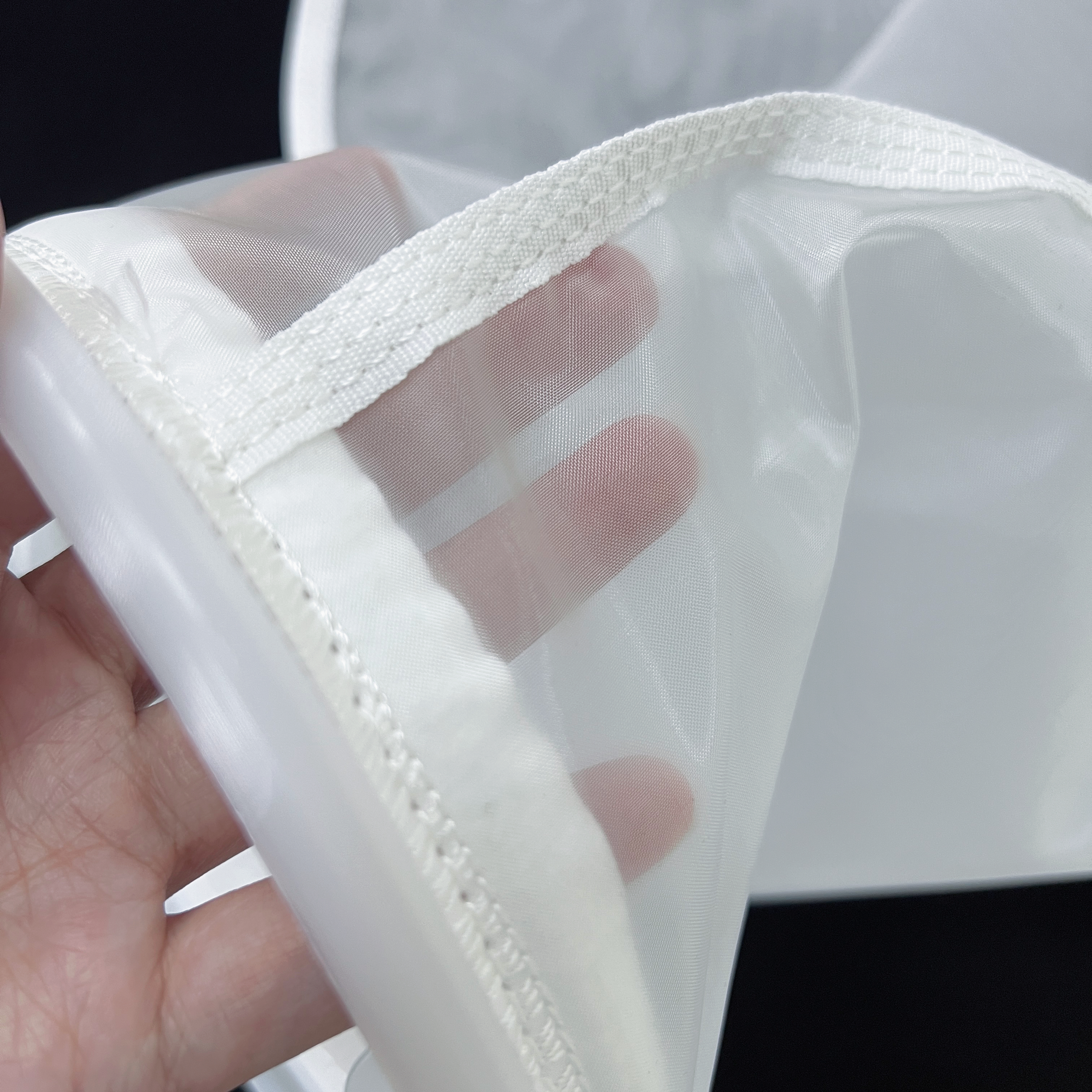

Nylon Material

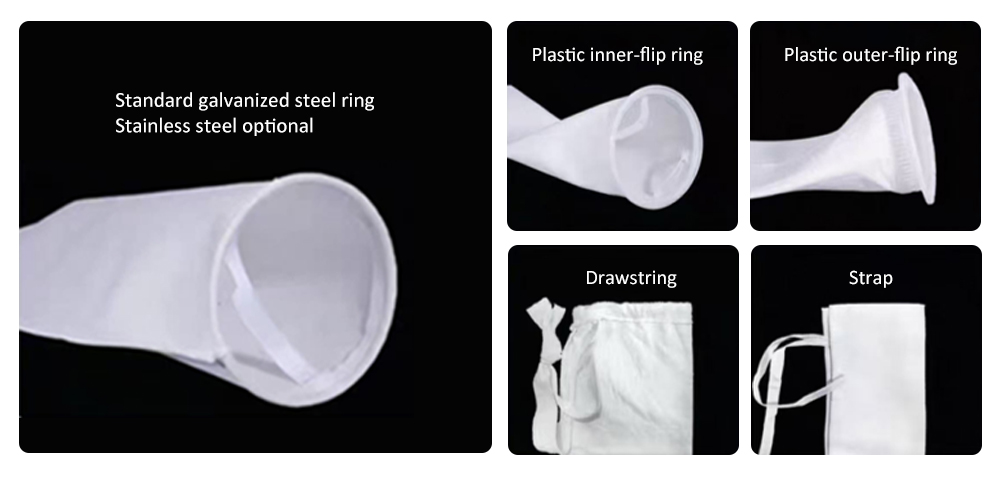

Multiple Bezel Materials Available

✅ galvanized steel ring ✅Plastic inner-flip ring
✅Plastic outer-flip ring ✅Drawstring
✅Strap

Speciﬁcations

PP Filter Bags
Model	Dimensions	Dimensions	Volume	Filtration accuracy	Maximum Flow rate	Filtration area
	(Dia*L)	(Dia*L)	(L)	(um)	(CBM/H)	(m2)
	(mm)	(inch)
HLFB #1	180*430	7*17	8	0.2-500	20	0.25
HLFB #2	180*810	7*32	17	0.2-500	40	0.5
HLFB #3	105*230	4*9	1.3	0.2-500	6	0.09
HLFB #4	105*380	4*15	2.6	0.2-500	12	0.16
HLFB #5	150*560	6*22	8	0.2-500	20	0.25

Nylon Filter Bags
Model	Dimensions	Dimensions	Volume	Filtration accuracy	Maximum Flow rate	Filtration area
	(Dia*L)	(Dia*L)	(L)	(um)	(CBM/H)	(m2)
	(mm)	(inch)
HLFB #1	180*430	7*17	8	18-1700	20	0.25
HLFB #2	180*810	7*32	17	18-1700	40	0.5
HLFB #3	105*230	4*9	1.3	18-1700	6	0.09
HLFB #4	105*380	4*15	2.6	18-1700	12	0.16
HLFB #5	150*560	6*22	8	18-1700	20	0.25
